“Every solar installer should be using meter adapters.”

Our Solar Meter Adapter is ideal for solar installers and utilities looking to standardize grid interconnection and reduce installation time. The Solar Meter Adapter enables the interconnection of systems up to 12kW via an integrated circuit breaker and field wiring terminal block. By avoiding the main service panel, the Solar Meter Adapter eliminates the need for installers to enter their customer’s homes.

Reduce Interconnection Time to Minutes

Our Solar Meter Adapter is UL-Listed equipment that enables rapid interconnection of grid-ready solar photovoltaic (PV) systems. The device creates a safe, standardized, low-cost alternative to traditional wiring methods.

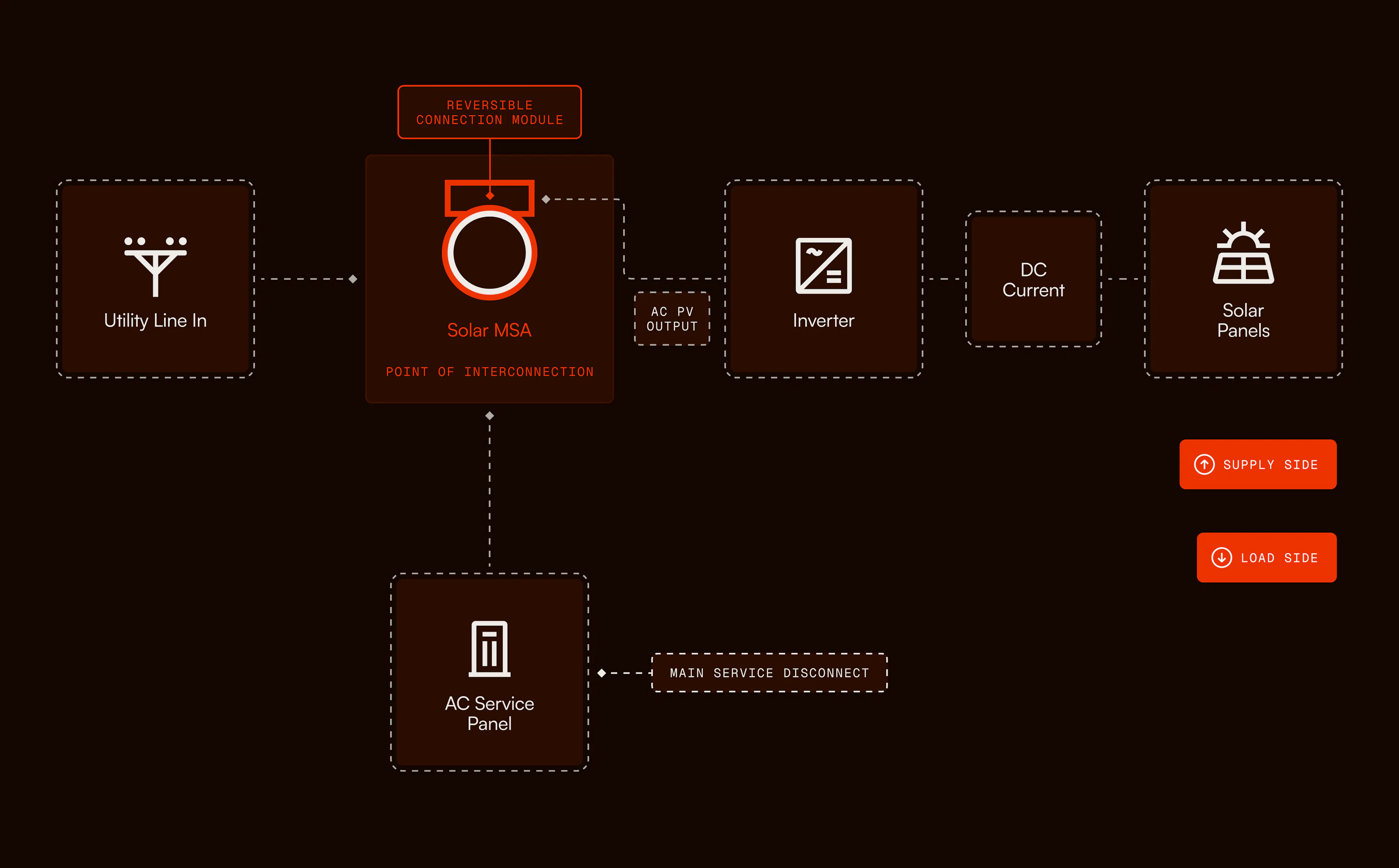

The Solar Meter Adapter is installed at the service point between a standard split-phase residential electric meter and the meter socket. PV systems are connected to the grid by attaching the tool-free junction box to the meter adapter. No wiring into the adapter is required, which greatly enhances the ease of installation and future serviceability.

The meter adapter features an integrated circuit breaker, the amperage of which is specified to match the output of the PV system.  The meter adapter operates in parallel with the utility’s grid. It is approved for use with grid-interactive PV systems where the inverter(s) meets UL 1741 requirements.

This technology enables three key innovations in the solar installation process, the Solar Meter adapter can:

  • Reduce the time that an electrician or utility representative must spend onsite to interconnect the system to less than 10 minutes;
  • Remove the need for installers to enter the residence (in the case of externally mounted electric meters);
  • Enable easy “swap-in” of future distributed generation resources as they are introduced to the market.

Over 15,000 Solar Meter Adapters have been deployed to date.

Features include:

  • Integrated circuit breaker supports PV systems up to 12kW at 240V
  • Tool-free, touch-safe, and reversible junction box with conduit entry from either side as field conditions warrant
  • UL Listed
  • NEC compliant
  • Patented

What’s inside the Solar Meter Adapter?

START INSTALLING TODAY

Solar Meter Adapter requires your local utility’s permission. To get started using the ConnectDER Solar Meter Adapter, visit our Order Now page to find out how to purchase meter adapters in your area.
